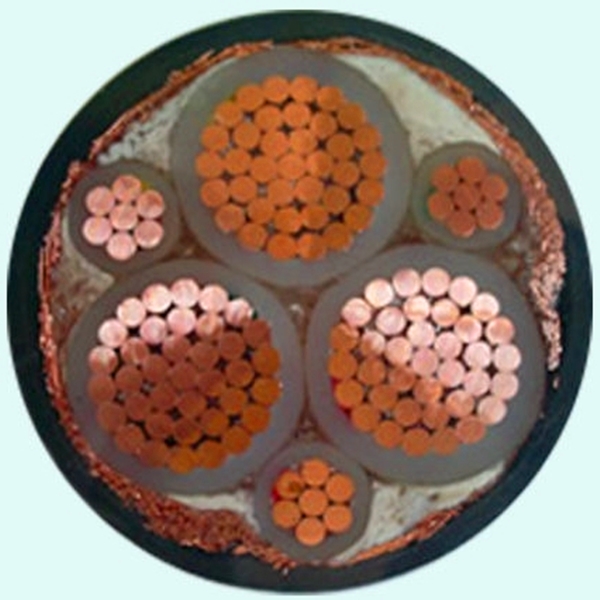

كابل تحويل التردد

كابل تحويل التردد هو خط التوصيل بين مزود الطاقة ومحرك التردد المتغير ، وهو أيضًا السلك لنقل الطاقة الكهربائية.

  • العلامة التجارية:

    Hante,HANTE
  • رقم العنصر.:

    XTD-Special-09
  • الطلب (موك):

    200 meters
  • دفع:

    T/T 30% the deposit, the balance will be paid
  • سعر السوق:

    $/M 46.88
  • السعر:

    $36.66/42.55 per meter
  • أصل المنتج:

    Hubei Province, China.
  • اللون:

    Black or others.
  • ميناء الشحن:

    Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.
  • المهلة:

    Within 15-20 working days as soon as we
  • وزن:

    3680 KG/KM
  • تفاصيل المنتج

frequency conversion cable


main keywords

frequency conversion cable, frequency transformer cable, special cables for frequency converter.


application characteristics

the frequency conversion cable is mainly used for the connection between the frequency conversion power supply and the variable frequency motor, as well as in the power transmission and distribution lines with the rated voltage of 1kv and below. it can keep the frequency converter in normal operation without electromagnetic interference, it is especially suitable for electric power, environmental protection, petroleum, chemical industry, coal mine, railway, pharmacy, mining equipment, metallurgy and steel, network communication, equipment manufacturing, paper industry and other industries.

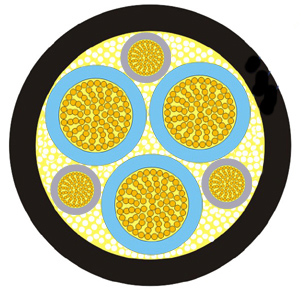

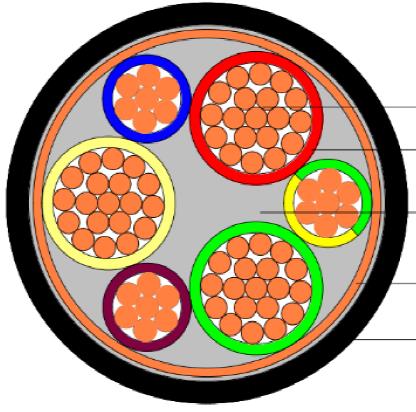

products structure

---conductor material

pure annealed copper wire, strand class 2, or flexible class 5.

---insulation material

xlpe(cross-linked polyethylene).

---insulation color

1c: brown, blue, red, yellow, green, black, or others.

2c: brown, blue

3c: brown, blue, yellow/green

4c: brown, blue, black, yellow/green,

5c: brown, blue, black, grey, yellow/green

6c: brown, blue, black, grey, white, yellow/green

remark: the insulated color is nature, then it with a colored tape.

---filler material

pp tape or fiberglass tape.

---inner sheath material (optional)

blackpvc (polyvinyl chloride)

---cabling material

non-woven fabrics

---outsheath material

pvc (polyvinyl chloride)

---outsheath color

black, or others.

---core number

3+3 cores or 3+1 cores.

---voltage rate(U0/U)

0.6/1kv, 600/1000v (um: 1.2kv).

---working temperature

-15℃~+90℃.

---minimum bending radius

fixed: 20 x out diameter.

---production standard

gb/t 12706, iec 60502, bs 7889.

---products delivery

within 10-15 working days as soon as we received the deposit.


products type

bp-yjvtp2,zr-bp-yjvtp2,bp-yjvp12r,bp-zr-yjvp12r,bp-yjvpx12R,zr-bp-yjvpx12r, wdzn-bp-yjep,

wdz-bp-yjep2, wdz-bp-yjep2-22.

symbolinstruction:

bp --frequency conversion cables.

yj -- insulation material, it mean is xlpe (cross-linked polyethylene)

v -- out sheath material, it mean ispolyvinyl chloride.

y or e -- out sheath material, "y" is polyethylene; "e" is polyclinic.

zr -- flame retardant, fire retardant

nh -- fire resistant

wdz -- low smoking zero halogen

tp2 --concentric conductor + copper tape shielding

p12 --copper tape shielding + copper wire braiding double shielding

px12 --copper tape shielding + tinned copper wire braiding double shielding

p -- copper wire braided shielding

P1-- tinned copper wire shielding

P2--copper plastic composite tape shielding

P3--aluminum plastic composite tape wrapping shielding

P2-22--copper plastic composite tape shielding + steel tape armored + pvc out sheath.

P2-32--copper plastic composite tape shielding + steel wire armored + pvc out sheath.



products characteristics

1. thefrequency conversion cable, the conductor is plain annealed copper wires,strandclass 2 or flexible class 5, it meets to gb/t 3956-2008 or iec 60228.
2. xlpe (cross linked polyethylene) insulation has good temperature and weather resistance.
3. low transmission impedance, good electromagnetic compatibility.
4. low operating capacitance.
5. good anti-interference and low radiation performance.
6. symmetrical three core cable structure design has better transmission performance than four core cable.


products installation

1. voltage rated: u0/u: 0.6/1kv.
2. the maximum allowable temperature of cable conductor is 90 ℃ for a long time and 250 ℃ for short circuit.
3. the ambient temperature for installation and laying shall not be lower than 0 ℃, and that for fixed laying shall not be lower than - 10℃.
4. the minimum allowable bending radius of cable is not less than 15d (d-cable outer diameter, mm).

remark

---the aboveinformation is only foryou reference, for the formaltechnicaldata, please refer to the actual cables.

---the product can have flame retardant, fire-resistantor low smoking zero halogen properties, and their working temperature can be 90 degree, but the production process and insulation materials maybe hasa few of different.

---for the yjv powercable, accordingto the practice, the common specification is 50~300 mm2.

---the oem or obm servicewill be accepted, but the customer should be provided the authorization letter tous in advance, and the authorization letter must be true and valid.

---hante cable:embrace new times, co-create xintiandi; focus on quality, foremost service.

---hante cable: goodmaterial, reasonable weight, enough length, well-known brand wins your trust.

main advantage


hot-selling products


raw material


production process

inspection process

frequently asked questions

1. are you the manufacturer ortrading company?

wuhan xitiandi electrical technology co., ltd (hante cable), isthe professional in wire and cables manufacturer. we can control yourorder from the first begining to the last. welcome to visit hante cable,we'll pick you up in wuhan airport or high-speed railways station.

2. how can i get a sample to test yourquality?
hante cable can provide the free sample to you, but you will pay the expresscharges.
3. what’s your minimum order quantity?
for electrical wire, the moq is 1000 meters; for power cable, the moq is 200meters; of cources, the moq can be negotiated. but in order to save theshipment space and cost for you, hante cable suggests that the moq of electrical wiresshould be more than 3000 meters, and the moq of power cable should be more than500 meters.
4. can i get a discount?
it depends on your quantity, we can make a discount and afford the freight. plskindly contact us.
5. does your company accept oem production?
yes, could print your company name, we even custom the quality card to promoteyour company.
40

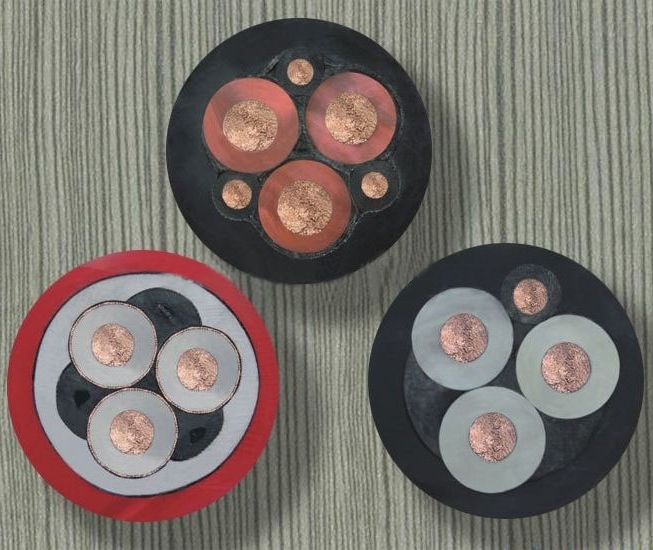

single core medium voltage power cables


main keywords

single core medium voltage power cable, n2xsy power cable, bs 6622 xlpe-pvc power cable,

bs 7835 xlpe-lszh power cable,8.7/10kv 8.7/15kv 26/35kv and other mv power cable with voltage rate.


application characteristics

single core medium voltage power cable, copperwire or aluminum wire conductor, semi-conductive screened tape, xlpe insulated,semi-conductive screened tape, pvc inner sheath, copper tape screened, pvcinner sheath, steel tape or steel wire armored (armored material is optioned), pvcout sheath, u0/u: 3.6/6kv~26/35kv. mediumvoltage power cable is applied to the transmission and distribution lines with ratedvoltage from 3.6/6kv to 26/35kv, to be laid directly in ground, outdoors,indoors and in cable ducts.

notice: for the single core power cable, their metallicarmored material should be used non-magnetic steel tape or steel wire.


products structure

---conductor material

plainannealed compacted stranded copper wire.

---conductor identification

colored tape under the screen

---insulation material

xlpe (cross-linkedpolyethylene).

---screen material

semi-conductinglayer with a copper tape screen covering each core

---bedding material

pvc (polyvinylchloride)

---armored material (option)

galvanized steeltape, or galvanized steel wire.

---out sheath material

pvc (polyvinylchloride)

---sheath color

black, orothers.

---core number

single core,1c.

---voltage rate (u0/u)

3.6/6kv~26/35kv

---working temperature

-15℃~+90℃.

---minimum bending radius

20 x outdiameter

---production standard

gb/t 12706, iec60502, bs 6622, bs 7835, vde 0276.

---products delivery

within 15-20 working days as soon as we received the deposit.


products specification

8.7/10kv, 8.7/15kv (un-armored material)

cross

section

area

(mm2)

conductor

material

conductor

structure

(pcs/mm)

xlpe

insulated

thickness

(mm)

pvc

sheathed

thickness

(mm)

refer

max.

out

diameter

(mm)

refer

net

weight

(kg/km)

max. dc

conductor

resistance

at 20℃

(Ω/km)

refer

current

rating

in air

(a)

refer

current

rating

in ground

(a)

1x25

copper

wire

1C

7/2.14

4.5

1.6

22.0

696

0.727

165

160

1x35

copper

wire

1C

7/2.52

4.5

1.6

23.0

819

0.524

205

190

1x50

copper

wire

1C

19/1.78

4.5

1.7

24.5

970

0.387

245

225

1x70

copper

wire

1C

19/2.14

4.5

1.8

26.2

1191

0.268

305

275

1x95

copper

wire

1C

19/2.52

4.5

1.8

27.9

1493

0.193

370

330

1x120

copper

wire

1C

37/2.04

4.5

1.9

29.5

1760

0.153

430

375

1x150

copper

wire

1C

37/2.25

4.5

1.9

31.1

2085

0.124

490

425

1x185

copper

wire

1C

37/2.52

4.5

2.0

32.8

2391

0.0991

560

480

1x240

copper

wire

1C

48/2.52

4.5

2.1

35.3

2973

0.0754

665

555

1x300

copper

wire

1C

61/2.52

4.5

2.2

37.7

3657

0.0601

765

630

1x400

copper

wire

1C

61/2.85

4.5

2.3

40.9

4571

0.0470

890

725

1x500

copper

wire

1C

100/2.52

4.5

2.4

44.4

5692

0.0366

1030

825

1x630

copper

wire

1C

126/2.52

4.5

2.5

48.0

6945

0.0283

1160

940


8.7/10kv 8.7/15kvyjv22(steel tape armored)

cross

section

area

(mm2)

conductor

material

conductor

structure

(pcs/mm)

xlpe

insulated

thickness

(mm)

pvc

sheathed

thickness

(mm)

refer

max.

out

diameter

(mm)

refer

net

weight

(kg/km)

max. dc

conductor

resistance

at 20℃

(Ω/km)

refer

current

rating

in air

(a)

refer

current

rating

in ground

(a)

1x25

copper

wire

1C

7/2.14

4.5

1.8

25.6

919

0.727

165

160

1x35

copper

wire

1C

7/2.52

4.5

1.8

26.6

1055

0.524

205

190

1x50

copper

wire

1C

19/1.78

4.5

1.8

27.9

1219

0.387

245

225

1x70

copper

wire

1C

19/2.14

4.5

1.9

30.8

1458

0.268

305

275

1x95

copper

wire

1C

19/2.52

4.5

2.0

32.7

1780

0.193

370

330

1x120

copper

wire

1C

37/2.04

4.5

2.0

34.1

2312

0.153

430

375

1x150

copper

wire

1C

37/2.25

4.5

2.1

35.9

2670

0.124

490

425

1x185

copper

wire

1C

37/2.52

4.5

2.2

37.6

3007

0.0991

560

480

1x240

copper

wire

1C

48/2.52

4.5

2.2

39.9

3621

0.0754

665

555

1x300

copper

wire

1C

61/2.52

4.5

2.3

42.5

4330

0.0601

765

630

1x400

copper

wire

1C

61/2.85

4.5

2.4

45.7

5281

0.0470

890

725

1x500

copper

wire

1C

100/2.52

4.5

2.5

49.4

6442

0.0366

1030

825

1x630

copper

wire

1C

126/2.52

4.5

2.7

53.4

7766

0.0283

1160

940


8.7/10kv 8.7/15kvyjv32(steel wire armored)

cross

section

area

(mm2)

conductor

material

conductor

structure

(pcs/mm)

xlpe

insulated

thickness

(mm)

pvc

sheathed

thickness

(mm)

refer

max.

out

diameter

(mm)

refer

net

weight

(kg/km)

max. dc

conductor

resistance

at 20℃

(Ω/km)

refer

current

rating

in air

(a)

refer

current

rating

in ground

(a)

1x25

copper

wire

1C

7/2.14

4.5

1.9

29.0

1846

0.727

165

160

1x35

copper

wire

1C

7/2.52

4.5

1.9

30.0

2026

0.524

205

190

1x50

copper

wire

1C

19/1.78

4.5

2.0

31.5

2237

0.387

245

225

1x70

copper

wire

1C

19/2.14

4.5

2.0

33.0

2520

0.268

305

275

1x95

copper

wire

1C

19/2.52

4.5

2.1

34.9

2911

0.193

370

330

1x120

copper

wire

1C

37/2.04

4.5

2.2

37.5

3690

0.153

430

375

1x150

copper

wire

1C

37/2.25

4.5

2.2

39.1

4005

0.124

490

425

1x185

copper

wire

1C

37/2.52

4.5

2.3

40.8

4402

0.0991

560

480

1x240

copper

wire

1C

48/2.52

4.5

2.3

43.1

5104

0.0754

665

555

1x300

copper

wire

1C

61/2.52

4.5

2.4

45.7

5908

0.0601

765

630

1x400

copper

wire

1C

61/2.85

4.5

2.5

48.9

6982

0.0470

890

725

1x500

copper

wire

1C

100/2.52

4.5

2.6

52.6

8287

0.0366

1030

825

1x630

copper

wire

1C

126/2.52

4.5

2.8

56.6

9789

0.0283

1160

940

26/35kv yjv(unarmored material)

cross

section

area

(mm2)

conductor

material

conductor

structure

(pcs/mm)

xlpe

insulated

thickness

(mm)

pvc

sheathed

thickness

(mm)

refer

max.

out

diameter

(mm)

refer

net

weight

(kg/km)

max. dc

conductor

resistance

at 20℃

(Ω/km)

refer

current

rating

in air

(a)

refer

current

rating

in ground

(a)

1x50

copper

wire

1C

19/1.78

10.5

2.2

38.7

1727

0.387

245

225

1x70

copper

wire

1C

19/2.14

10.5

2.2

40.2

1980

0.268

305

275

1x95

copper

wire

1C

19/2.52

10.5

2.3

42.1

2335

0.193

370

330

1x120

copper

wire

1C

37/2.04

10.5

2.4

43.7

2650

0.153

430

375

1x150

copper

wire

1C

37/2.25

10.5

2.4

45.3

3016

0.124

490

425

1x185

copper

wire

1C

37/2.52

10.5

2.5

47.0

3377

0.0991

560

480

1x240

copper

wire

1C

48/2.52

10.5

2.5

49.3

3996

0.0754

665

555

1x300

copper

wire

1C

61/2.52

10.5

2.6

51.7

4733

0.0601

765

630

1x400

copper

wire

1C

61/2.85

10.5

2.7

54.9

5723

0.0470

890

725

1x500

copper

wire

1C

100/2.52

10.5

2.8

59.8

7068

0.0366

1030

825

1x630

copper

wire

1C

126/2.52

10.5

3.0

63.6

8418

0.0283

1160

940

26/35kv yjv22(steel tape armored)

cross

section

area

(mm2)

conductor

material

conductor

structure

(pcs/mm)

xlpe

insulated

thickness

(mm)

pvc

sheathed

thickness

(mm)

refer

max.

out

diameter

(mm)

refer

net

weight

(kg/km)

max. dc

conductor

resistance

at 20℃

(Ω/km)

refer

current

rating

in air

(a)

refer

current

rating

in ground

(a)

1x50

copper

wire

1C

19/1.78

10.5

2.4

43.7

2600

0.387

245

225

1x70

copper

wire

1C

19/2.14

10.5

2.4

45.2

2890

0.268

305

275

1x95

copper

wire

1C

19/2.52

10.5

2.5

47.1

3270

0.193

370

330

1x120

copper

wire

1C

37/2.04

10.5

2.5

48.7

3600

0.153

430

375

1x150

copper

wire

1C

37/2.25

10.5

2.6

50.5

4020

0.124

490

425

1x185

copper

wire

1C

37/2.52

10.5

2.6

52.0

4410

0.0991

560

480

1x240

copper

wire

1C

48/2.52

10.5

2.7

54.7

5110

0.0754

665

555

1x300

copper

wire

1C

61/2.52

10.5

2.8

57.1

5900

0.0601

765

630

1x400

copper

wire

1C

61/2.85

10.5

2.9

60.5

6340

0.0470

890

725

1x500

copper

wire

1C

100/2.52

10.5

3.0

65.6

8380

0.0366

1030

825

1x630

copper

wire

1C

126/2.52

10.5

3.1

69.2

9790

0.0283

1160

940


26/35kv yjv32(steel wire armored)

cross

section

area

(mm2)

conductor

material

conductor

structure

(pcs/mm)

xlpe

insulated

thickness

(mm)

pvc

sheathed

thickness

(mm)

refer

max.

out

diameter

(mm)

refer

net

weight

(kg/km)

max. dc

conductor

resistance

at 20℃

(Ω/km)

refer

current

rating

in air

(a)

refer

current

rating

in ground

(a)

1x50

copper

wire

1C

19/1.78

10.5

2.5

46.9

4030

0.387

245

225

1x70

copper

wire

1C

19/2.14

10.5

2.5

48.4

4380

0.268

305

275

1x95

copper

wire

1C

19/2.52

10.5

2.6

50.3

4830

0.193

370

330

1x120

copper

wire

1C

37/2.04

10.5

2.6

51.9

5250

0.153

430

375

1x150

copper

wire

1C

37/2.25

10.5

2.7

53.7

5730

0.124

490

425

1x185

copper

wire

1C

37/2.52

10.5

2.7

55.2

6160

0.0991

560

480

1x240

copper

wire

1C

48/2.52

10.5

2.8

57.9

6940

0.0754

665

555

1x300

copper

wire

1C

61/2.52

10.5

2.9

60.3

7810

0.0601

765

630

1x400

copper

wire

1C

61/2.85

10.5

3.0

63.7

8990

0.0470

890

725

1x500

copper

wire

1C

100/2.52

10.5

3.1

68.8

10500

0.0366

1030

825

1x630

copper

wire

1C

126/2.52

10.5

3.3

72.6

12080

0.0283

1160

940


remark

---the aboveinformation is only foryou reference, for the formaltechnicaldata, please refer to the actual cables.

---the product can have flame retardant, fire-resistantor low smoking zero halogen properties, but the production process and insulation materials maybe hasa few of different.

---fore the single core medium voltage powercable, accordingto the practice, the common specification is 95~300 mm2.

---the oem or obm servicewill be accepted, but the customer should be provided the authorization letter tous in advance, and the authorization letter must be true and valid.

---hante cable:embrace new times, co-create xintiandi; focus on quality, foremost service.

---hante cable: goodmaterial, reasonable weight, enough length, well-known brand wins your trust.

main advantage


hot-selling products


raw material


production process

inspection process

frequently asked questions

1. are you the manufacturer ortrading company?

wuhan xitiandi electrical technology co., ltd (hante cable), isthe professional in wire and cables manufacturer. we can control yourorder from the first begining to the last. welcome to visit hante cable,we'll pick you up in wuhan airport or high-speed railways station.

2. how can i get a sample to test yourquality?
hante cable can provide the free sample to you, but you will pay the expresscharges.
3. what’s your minimum order quantity?
for electrical wire, the moq is 1000 meters; for power cable, the moq is 200meters; of cources, the moq can be negotiated. but in order to save theshipment space and cost for you, hante cable suggests that the moq of electrical wiresshould be more than 3000 meters, and the moq of power cable should be more than500 meters.
4. can i get a discount?
it depends on your quantity, we can make a discount and afford the freight. plskindly contact us.
5. does your company accept oem production?
yes, could print your company name, we even custom the quality card to promoteyour company.
ارسل رسالة
إذا كنت مهتمًا بمنتجاتنا وتريد معرفة المزيد من التفاصيل ، فيرجى ترك رسالة هنا ، وسنقوم بالرد عليك في أقرب وقت ممكن.

    العلامات ذات الصلة :

منتجات ذات صله
AS/NZS 3013 Fire rated cable
as / nzs3013 تصنيف حريق lszh الكابلات الكهربائية المعزولة والمغلفة
ك / nzs 3013 مقاومة للحريق lszh الكابلات الكهربائية المعزولة والمغلفة ، as / nzs 5000.1 ، 110 temperature درجة حرارة العمل ، ws52w ، lszh ، مقاوم للهب، سوف يكون الإشعاع والعزل غمد متشابكين.
PV1-F solar cable
الكهروضوئية الكهروضوئية pv1-f h1z2z2-k
الكهروضوئية الكهروضوئية pv1-f h1z2z2-k ، 0.6 / 1 كيلو فولت ، cu / xlpe / lszh ، موصل نحاس صلب معلب ، عزل xlpe ، lszh غمد ، يلتقي مع tÜv 2 pfg 1169 / 08.2007 .
H07RN-F rubber
الكابلات المطاطية h05rn-f h07rn-f
كابلات مطاطية h05rn-f h07rn-f ، موصل نحاسي صلب ، عازل مطاطي ، غلاف مطاطي ، يلتقي مع jb / t 8735 ، gb / t 5013 ، bs en 50525-2-21 ، 300 / 500v ، 450 / 750v.
aluminum alloy power cable
xlpe معزول البلاستيكية كابل الطاقة سبائك الألومنيوم غمد
كابل الطاقة سبائك الألمنيوم المعزول بغلاف PVC المعزول xlpe قابل للتطبيق على موصل سبائك الألومنيوم والمنطقة المقطعية من 16 مم 2 إلى 400 مم 2 . نوع الموصل الأساسي هو درجة astm b موصل موصل مجدولة ، والذي يأتي إلى gb / t 19666-2019 درجة مثبطات اللهب c. يتوافق كابل سبائك الألومنيوم بشكل كبير مع gb / t 3956-2008 و gb / t 12706-2020 ومعايير مختلفة من أحدث تحرير لـ iec 60502. يمكن استخدام كابل سبائك الألومنيوم على نطاق واسع بشرط عدم وجود حماية ميكانيكية مدرعة. يمكن استخدامها لخطوط التغذية مثل مبنى المكاتب والفنادق ومركز التسوق وإضاءة المصنع والمقبس والمعدات الكهربائية الأخرى. كابل سبائك الألومنيوم قابل للاستخدام في درجة حرارة العمل 90 ℃ ، وعزل xlpe ، والغلاف الخارجي PVC الأسود.
THHN nylon Electrical Wires
thwn pvc النايلون معزول الأسلاك الكهربائية مغمد
من خلال الأسلاك الكهربائية المصنوعة من النايلون المعزول PVC ، تمت الموافقة على الموصلات للاستخدام بجهد أقصى 600 فولت ودرجة حرارة موصل قصوى تبلغ 90 درجة مئوية في الأماكن الرطبة أو الجافة و 75 درجة مئوية عند تعرضها للبنزين والزيت.
PVC welding cable
مرحبا كابل لحام بولي كلوريد الفينيل معزول
كابل لحام معزول من مادة PVC عالي المرونة ، موصل سلك نحاسي مرن عادي ، حبلا من الفئة 5 أو الفئة 6 ، عزل بولي فينيل فليكس عالي المرونة ، بدون غلاف ، 450/750 فولت ، يجتمع إلى iec 60227 ، gb / t 5023 ، jb / t 8734.
H01N2-D rubber welding cable
كبل لحام معزول بالمطاط h01n2-d
كبل لحام معزول بالمطاط h01n2-d ، موصل سلك نحاسي مرن عادي صلب ، الفئة 5 أو الفئة 6 حبلا ، عزل مركب من المطاط ، 450/750 فولت ، 0.6 / 1 كيلو فولت ، يلتقي بـ iec 60245 ، jb / t 8735 ، gb / t 5013 ، bs en 50525، vde 0282، بس 638 الجزء 4.
prefabricated branch power cable
كابل طاقة فرع مسبق الصنع 0.6 / 1kv
مع تطور البناء الحديث ، تعقيد أنظمة توزيع المباني ، أصبحت الموثوقية موضوع اهتمام متزايد واهتمام من العملاء. خاصة تخفيض تكلفة نظام التوزيع في موقع البناء ، وتقصير دورة البناء ، وأصبحت موثوقية التوريد المعززة طلبًا قويًا من البنائين والمستثمرين وقطاع الكهرباء. من أجل تلبية متطلبات السوق ، قام كابل hante الذي يمتص التكنولوجيا المتقدمة المتقدمة من الخارج ، بتطوير كابل الطاقة الفرعي الجاهز بنجاح بشكل مستقل. كابل طاقة فرع ماركة "hante" مسبقة الصنع وتقنيتها المتقدمة ، ونوعية موثوق بها ، وسعر منخفض لتلبية متطلبات المستخدمين.
اترك رسالة
مرحبا بك في Xintiandi
إذا كنت مهتمًا بمنتجاتنا وتريد معرفة المزيد من التفاصيل ، فيرجى ترك رسالة هنا ، وسنقوم بالرد عليك في أقرب وقت ممكن.

الصفحة الرئيسية

منتجات

حول

اتصل
